APSystems Y3 Trunk cable for DS3/QS1 - 2m (2322301303).

APSystems Y3 Trunk cable for DS3/QS1 - 2m (2322301303).

$0.00
Sale price $0.00
OFF Sold out
Shipping calculated at checkout.

Type

AC Connector

SKU

Y3 Bus Cable - 2m - 12AWG

Minimum Order Quantity: 1

Call for Shipping Request for Quote
Description
Reviews

APS Systems Products

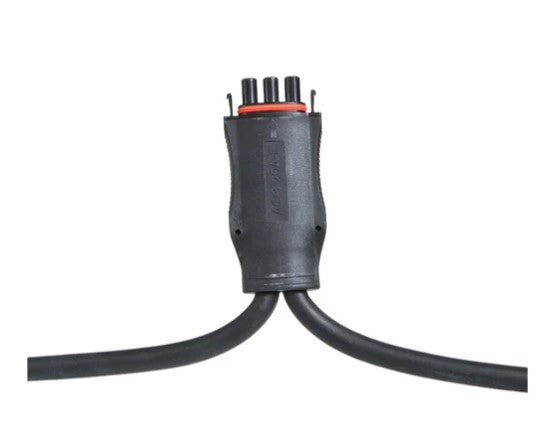

APsystems 2-Meter Y3 AC Bus Trunk Cable.

The Y3 Bus Cable consists of a continuous length of insulated, UV-resistant 2.5mm² (12 AWG) cable. Pre-assembled connector plugs are positioned every 2 meters (~6 ft), providing a connection point for each microinverter.

When planning your system layout, account for one connector per microinverter. This corresponds to every 2 solar panels when using YC600Y inverters and every 4 panels when using QS1 units. Any unused connectors can be sealed with the Y-CONN cap, which is sold separately.

Pricing Details:
The listed price is EXW (Ex-Works), excluding shipping costs.
Please contact us for a shipping quote.

Product Query Form 📄 Query for Product
About your query!

Development by DDSHOPAPPS

APS Systems Products

APsystems 2-Meter Y3 AC Bus Trunk Cable.

The Y3 Bus Cable consists of a continuous length of insulated, UV-resistant 2.5mm² (12 AWG) cable. Pre-assembled connector plugs are positioned every 2 meters (~6 ft), providing a connection point for each microinverter.

When planning your system layout, account for one connector per microinverter. This corresponds to every 2 solar panels when using YC600Y inverters and every 4 panels when using QS1 units. Any unused connectors can be sealed with the Y-CONN cap, which is sold separately.

Pricing Details:
The listed price is EXW (Ex-Works), excluding shipping costs.
Please contact us for a shipping quote.

       Product Specifications

Specification Details
Cable Gauge 12 AWG
Cable Diameter 2.5 mm (0.098 inches)
Maximum Current Capacity 20A
Length 2 meters (6.56 feet) (Recommended for YC600Y and QS1 models)
Internal Configuration 3 internal wires, including a ground wire
Cable Type U-1000-RO2V (TC-ER)
Certifications CSA / TUV certified
Package Includes 1x connector

You can download the related files below:
