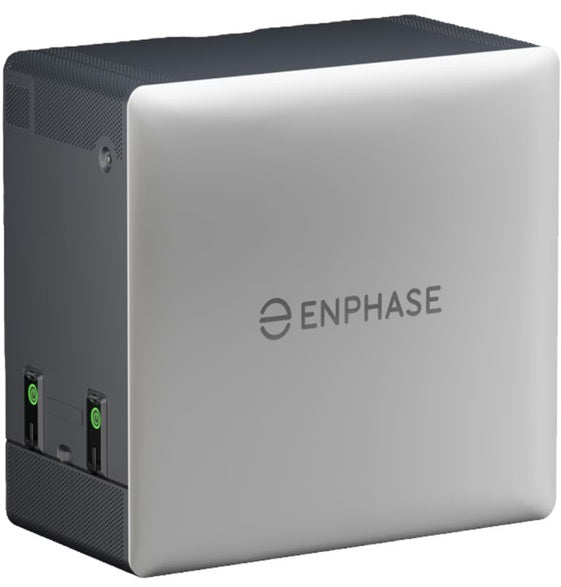

The IQ Battery 10C all-in-one AC-coupled system is compact.

The IQ Battery 10C all-in-one AC-coupled system is compact.

Regular price $3,021.07
Sale price $3,021.07 Regular price
OFF Sold out
Shipping calculated at checkout.

Type

Battery Storage

SKU

EN-B05-C01-US00-1-3-DOM-2545

15 In stock

Reviews

Enphase 5 kWh battery unit - includes ONE 5 kWh battery EN-B05-C01-US00-1-3-DOM-2545)

Enphase 5 kWh battery unit - includes ONE 5 kWh battery unit with one mounting bracket. Without ID cover (must be ordered SEPARATELY - SKU: EN-B10C-NC-0708-O-DOM) Each IQBATTERY-10C-1P-NA System MUST include:


Key Specification:

  • Manufacturer Part Number: B05-C01-US00-1-3-DOM
  • UL Certificate
  • Power Output: 5000 Watts
  • Shipping Weight: 164.5 lb
  • Shipping Dimensions: 30 x 28 x 10.5 in
  • Pallet Qty: 12
Product Query Form 📄 Query for Product

Enphase 5 kWh battery unit - includes ONE 5 kWh battery EN-B05-C01-US00-1-3-DOM-2545)

Enphase 5 kWh battery unit - includes ONE 5 kWh battery unit with one mounting bracket. Without ID cover (must be ordered SEPARATELY - SKU: EN-B10C-NC-0708-O-DOM) Each IQBATTERY-10C-1P-NA System MUST include:


Key Specification:

  • Manufacturer Part Number: B05-C01-US00-1-3-DOM
  • UL Certificate
  • Power Output: 5000 Watts
  • Shipping Weight: 164.5 lb
  • Shipping Dimensions: 30 x 28 x 10.5 in
  • Pallet Qty: 12

   Product Specifications

Parameter Value
Model IQBATTERY-10C-1P-NA
Output Power 7.08 kVA (continuous)
Output Current (240V) 29.5 A
Neutral Current (120V) 24 A
Phase Type Single-phase
Voltage 120/240 VAC
Frequency 60 Hz
Capacity 10.0 kWh
Temp (Charging) –20°C to 50°C
Temp (Discharging) –20°C to 55°C
Battery Type Lithium Iron Phosphate (LFP)
Mounting Wall or pedestal
