Asphalt Shingle Rooftop PV Junction Box

Asphalt Shingle Rooftop PV Junction Box

$38.77
Sale price $38.77
OFF Sold out
Shipping calculated at checkout.

Type

Junction Boxes

SKU

EZS-JB-1.XL

1 In stock

Call for Shipping Request for Quote
Description
Reviews

The Ultimate Rooftop Junction Box

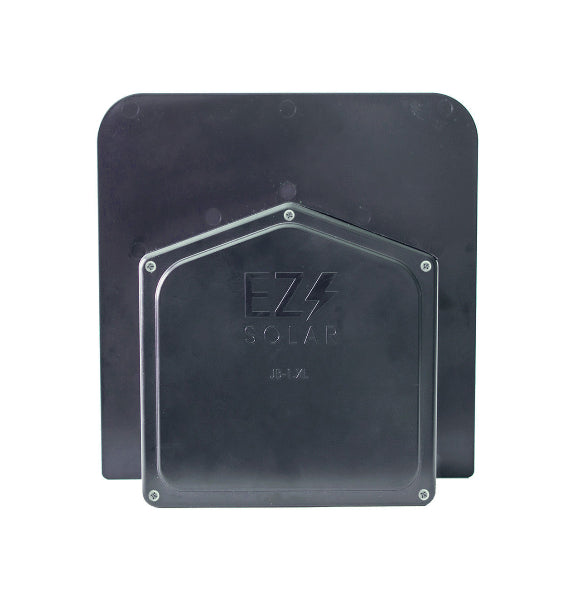

JB-1.XL Rooftop PV Junction Box- Asphalt Shingle. 1000V/120Amps

Made from advanced durable polycarbonate - 3 layers of water protection - 2 weep holes for breathability - UL1741 - NEMA Type 3R - Includes pre-installed DIN rail - Rated to 1000VDC at 120 amps - Roof Slope Range: 2.5 – 12:12



Key Specification:

  • Manufacturer Part Number: JB-1.XL
  • Manufacturer Warranty: 25 Years
  • Performance Warranty: 25
  • Shipping Weight: 1.9 lb
  • Shipping Dimensions: 12 x 12 x 3.25 in
  • Case Qty: 14
  • Pallet Qty: 280
Product Query Form 📄 Query for Product
About your query!

Development by DDSHOPAPPS

The Ultimate Rooftop Junction Box

JB-1.XL Rooftop PV Junction Box- Asphalt Shingle. 1000V/120Amps

Made from advanced durable polycarbonate - 3 layers of water protection - 2 weep holes for breathability - UL1741 - NEMA Type 3R - Includes pre-installed DIN rail - Rated to 1000VDC at 120 amps - Roof Slope Range: 2.5 – 12:12



Key Specification:

  • Manufacturer Part Number: JB-1.XL
  • Manufacturer Warranty: 25 Years
  • Performance Warranty: 25
  • Shipping Weight: 1.9 lb
  • Shipping Dimensions: 12 x 12 x 3.25 in
  • Case Qty: 14
  • Pallet Qty: 280

Product Specifications

Parameter Details
Maximum Voltage 1000 V
Maximum Current 120 A
Wire Size Range 14 AWG to 6 AWG
Minimum Spacing ½ inch between uninsulated live parts
Enclosure Type Type 3R
Roof Slope Range 2.5:12 to 12:12
Max Side Wall Fitting 1 inch
Max Floor Fitting 1 inch
Operating Temperature -35°C to 75°C
Compliance UL1741 compliant connectors
