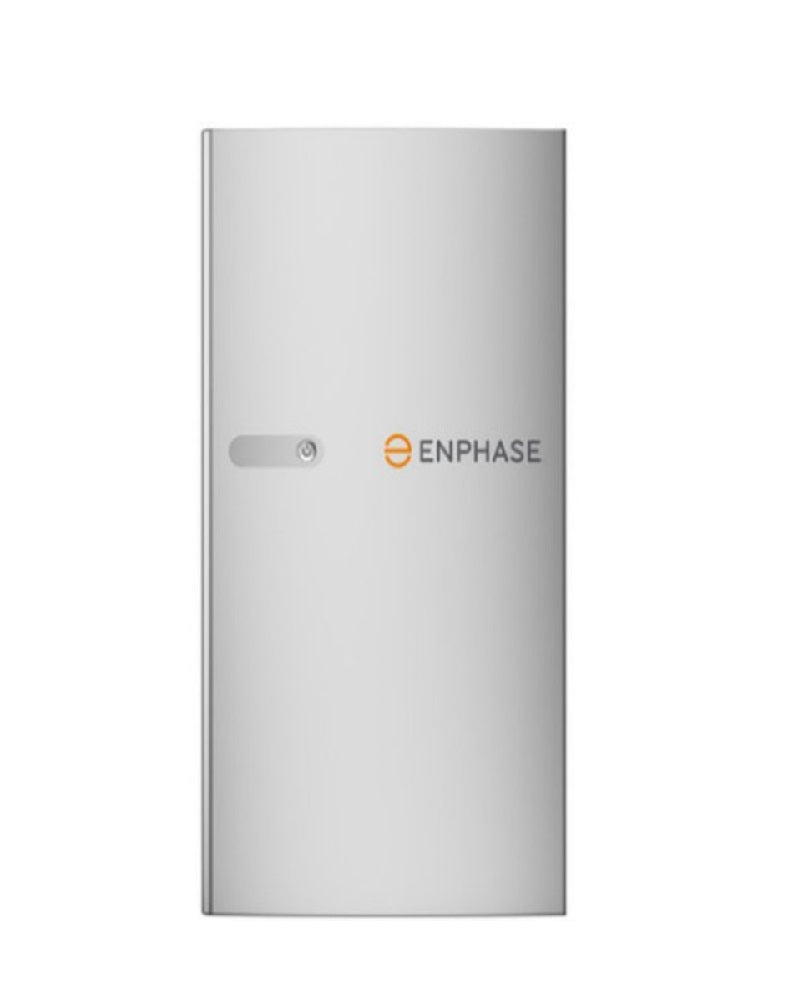

Enphase IQ Battery 5P Kit Includes one IQ Battery 5P.

Enphase IQ Battery 5P Kit Includes one IQ Battery 5P.

Regular price $3,331.91
Sale price $3,331.91 Regular price
OFF Sold out
Shipping calculated at checkout.

Type

Batteries

SKU

EN-IQBATTERY-5P-1P-NA

Minimum Order Quantity: 1

8 In stock

Reviews

Enphase

Enphase IQBATTERY-5P-1P-NA 5kWh IQ Battery 5P Kit.

The IQ Battery 5P (IQBATTERY-5P-1P-NA) is an all-in-one, AC-coupled energy storage system that combines battery storage with embedded microinverters. It stores energy for later use, such as during power outages, and converts solar energy into usable AC electricity for your home. The system has a total usable capacity of 5.0 kWh and includes six grid-forming microinverters with a continuous power rating of 3.84 kVA. It can achieve peak output power of 7.68 kW for 3 seconds and 6.14 kW for 10 seconds. Communication with the IQ Gateway is done via a wired signal, ensuring seamless integration.

Pricing Information:

This price is EXW (without shipping cost).
Please call for the shipping quote.

Product Query Form 📄 Query for Product

Enphase

Enphase IQBATTERY-5P-1P-NA 5kWh IQ Battery 5P Kit.

The IQ Battery 5P (IQBATTERY-5P-1P-NA) is an all-in-one, AC-coupled energy storage system that combines battery storage with embedded microinverters. It stores energy for later use, such as during power outages, and converts solar energy into usable AC electricity for your home. The system has a total usable capacity of 5.0 kWh and includes six grid-forming microinverters with a continuous power rating of 3.84 kVA. It can achieve peak output power of 7.68 kW for 3 seconds and 6.14 kW for 10 seconds. Communication with the IQ Gateway is done via a wired signal, ensuring seamless integration.

Pricing Information:

This price is EXW (without shipping cost).
Please call for the shipping quote.

               Product Specifications

Category Details
Total Capacity 5.0 kWh
Usable Capacity 5.0 kWh
DC Round-Trip Efficiency 96%
Nominal DC Voltage 76.8 V
Maximum DC Voltage 86.4 V
Operating Temperature (Charging) -20°C to 50°C (-4°F to 122°F) non-condensing
Operating Temperature (Discharging) -20°C to 55°C (-4°F to 131°F) non-condensing
Optimum Operating Temperature 0°C to 30°C (32°F to 86°F)
Battery Chemistry Lithium Iron Phosphate (LFP)
Dimensions (HxWxD) 980 mm x 550 mm x 188 mm (38.6 in x 21.7 in x 7.4 in)
Lifting Weight 66.3 kg (146.1 lbs)
Total Installed Weight 78.9 kg (174 lbs)
Enclosure Outdoor – NEMA 3R
Microinverter Enclosure IQ8D-BAT – NEMA Type 6
Cooling Natural Convection
