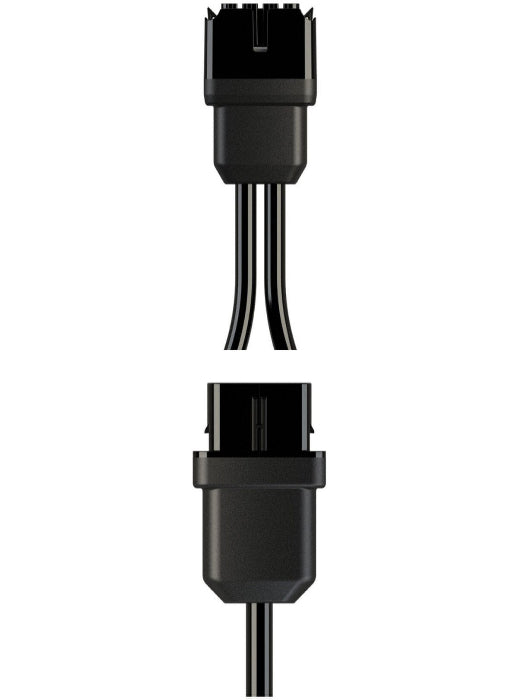

Enphase QD Cable 60-72 Cells Cell Modules (1.7m.

Enphase QD Cable 60-72 Cells Cell Modules (1.7m.

$47.00
Sale price $47.00
OFF Sold out
Shipping calculated at checkout.
Call for Shipping

Type

Connector

SKU

EN-QD-12-13-120-CUT-01

Minimum Order Quantity: 1

1029 In stock

Description
Reviews


QD Cable for 60-72 Cell Modules (1.7m Spacing, IQ8 Compatible).

The QD Cable (4x12AWG) is designed for 60-72 cell modules and is compatible with IQ8 Commercial Microinverters. It features connector spacing of 1.7m (5.6ft) and a maximum spacing of 1.3m (4.3ft) between microinverters. The 4-pin male connectors plug directly into the microinverters, with the connector count varying based on the cut length and must be in multiples of 3. A center tap is positioned every 6 connectors, with the first center tap occurring after 3 or 6 connectors. The cut will start at connector 1 or 4.

Note:

  • Must be sold in multiples of 3 connectors.
  • Cut cable lengths may include 2 sections with a minimum of 12 micro connectors on the shorter length.
  • Field wireable connectors and/or a junction box may be required to follow design guidelines.

Key Features:

  • Reliable
  • Easy Installation
  • Field Wireable QD Connectors
Product Query Form 📄 Query for Product
About your query!

Development by DDSHOPAPPS


QD Cable for 60-72 Cell Modules (1.7m Spacing, IQ8 Compatible).

The QD Cable (4x12AWG) is designed for 60-72 cell modules and is compatible with IQ8 Commercial Microinverters. It features connector spacing of 1.7m (5.6ft) and a maximum spacing of 1.3m (4.3ft) between microinverters. The 4-pin male connectors plug directly into the microinverters, with the connector count varying based on the cut length and must be in multiples of 3. A center tap is positioned every 6 connectors, with the first center tap occurring after 3 or 6 connectors. The cut will start at connector 1 or 4.

Note:

  • Must be sold in multiples of 3 connectors.
  • Cut cable lengths may include 2 sections with a minimum of 12 micro connectors on the shorter length.
  • Field wireable connectors and/or a junction box may be required to follow design guidelines.

Key Features:

  • Reliable
  • Easy Installation
  • Field Wireable QD Connectors

       Product Specifications

Specification Details
Manufacturer Enphase
Product Name Enphase QD Cable 60-72 Cells
Condition New
Weight 1.42 lb
Age 0 years
Length 165.60 in
Width 6.00 in
Height 2.00 in
Part Number EN-QD-12-13-120-CUT-01
