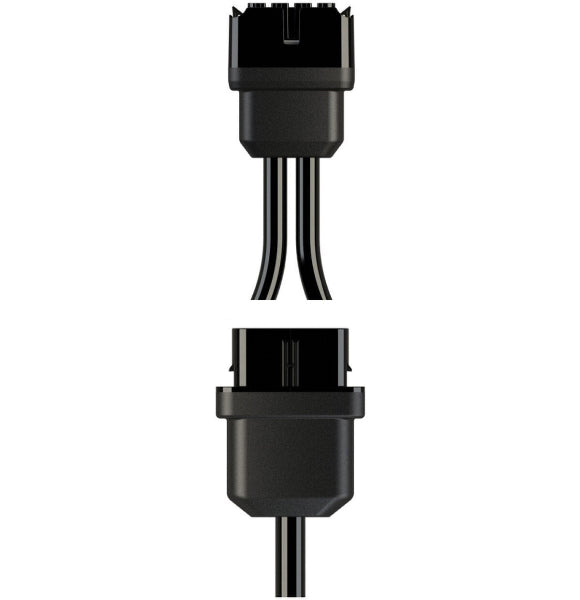

Enphase QD Cable and accessories

Enphase QD Cable and accessories

$4,683.17
Sale price $4,683.17
OFF Sold out
Shipping calculated at checkout.

Type

Connectors

SKU

EN-QD-12S-20-120

20 In stock

Call for Shipping Request for Quote
Description
Reviews

The Enphase QD Cable and accessories are integral parts of the IQ Commercial Microinverte,

QD cable (4x12AWG) for 60-72 cell, 2.0m max. Module pitch. conn pitch is 2.4m. 120 male connectors with PxC connector fitted to cable ends. 9 additional splice center taps spaced every 6 connectors. Center tap connectors spaced at half-pitch for US.



Key Specification:

  • Manufacturer Part Number: QD-12S-20-120
  • Shipping Weight: 340 lb
  • Shipping Dimensions: 39 x 23 x 20 in
  • Case Qty: 6
  • Pallet Qty: 6
Product Query Form 📄 Query for Product
About your query!

Development by DDSHOPAPPS

The Enphase QD Cable and accessories are integral parts of the IQ Commercial Microinverte,

QD cable (4x12AWG) for 60-72 cell, 2.0m max. Module pitch. conn pitch is 2.4m. 120 male connectors with PxC connector fitted to cable ends. 9 additional splice center taps spaced every 6 connectors. Center tap connectors spaced at half-pitch for US.



Key Specification:

  • Manufacturer Part Number: QD-12S-20-120
  • Shipping Weight: 340 lb
  • Shipping Dimensions: 39 x 23 x 20 in
  • Case Qty: 6
  • Pallet Qty: 6

Product Specifications

Parameter Details
Cable Type QD cable with 4 conductors (12 AWG)
Outer Diameter 11.5 mm
Conductor Resistance 5.43 Ω/km at 20°C
Certification UL 3003, UL 9703, DG cable
Flame Rating FT4
Compliance RoHS, OIL RES I, CE, UV resistant, UL (US)
Conductor Type THHN/THWN-2 (dry and wet use)
