Enphase QD Cable (Small Landscape) 60-72 Cell Modules.

Enphase QD Cable (Small Landscape) 60-72 Cell Modules.

$3,877.43
Sale price $3,877.43
OFF Sold out
Shipping calculated at checkout.

Type

Other

SKU

EN-QD-12-20-120

Minimum Order Quantity: 1

32 In stock

Call for Shipping Request for Quote
Description
Reviews

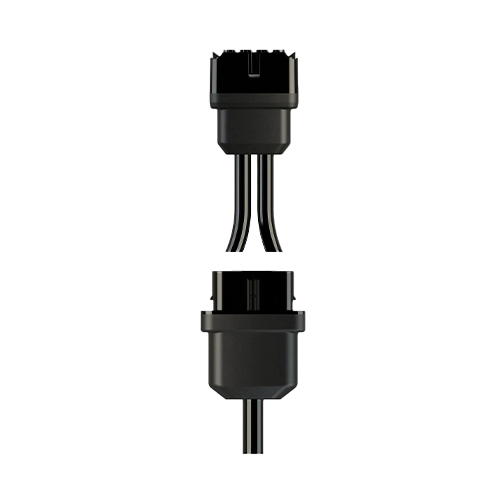

Enphase QD Cable 60-72 Cells (landscape, 2.4 m).

The QD Cable is designed for 60-72 cell modules, compatible with IQ8 Commercial Microinverters. It features 4x12AWG wiring, 2.4m connector spacing, and 2.0m max spacing between microinverters. The cable includes 120 4-pin male connectors and 19 center taps for consistent spacing.

Key Features:

  • Compatible with IQ8 Commercial Microinverters
  • 4x12AWG wiring for reliable connections
  • 2.4m connector spacing; 2.0m max spacing between inverters
  • 120 4-pin male connectors for easy installation
  • 19 center taps for consistent spacing
Product Query Form 📄 Query for Product
About your query!

Development by DDSHOPAPPS

Enphase QD Cable 60-72 Cells (landscape, 2.4 m).

The QD Cable is designed for 60-72 cell modules, compatible with IQ8 Commercial Microinverters. It features 4x12AWG wiring, 2.4m connector spacing, and 2.0m max spacing between microinverters. The cable includes 120 4-pin male connectors and 19 center taps for consistent spacing.

Key Features:

  • Compatible with IQ8 Commercial Microinverters
  • 4x12AWG wiring for reliable connections
  • 2.4m connector spacing; 2.0m max spacing between inverters
  • 120 4-pin male connectors for easy installation
  • 19 center taps for consistent spacing

       Product Specifications

Specification Details
Cable Type 4 conductors, 12 AWG
Outer Diameter 11.5 mm
Voltage Rating 600 V (Connector rating up to 277 VAC)
Certification UL 3003 (raw cable), UL 9703 (cable assemblies), DG cable
Max. AC Conductor Resistance 5.43 Ω/km at 20°C (12 AWG)
Flame Test Rating FT4
Compliance RoHS, OIL RES I, CE, UV resistant, combined UL for the US
Conductor Type THHN/THWN-2 (dry/wet)
Connector Spacing 2.4 m (7.9 ft)

You can download the related files below:
