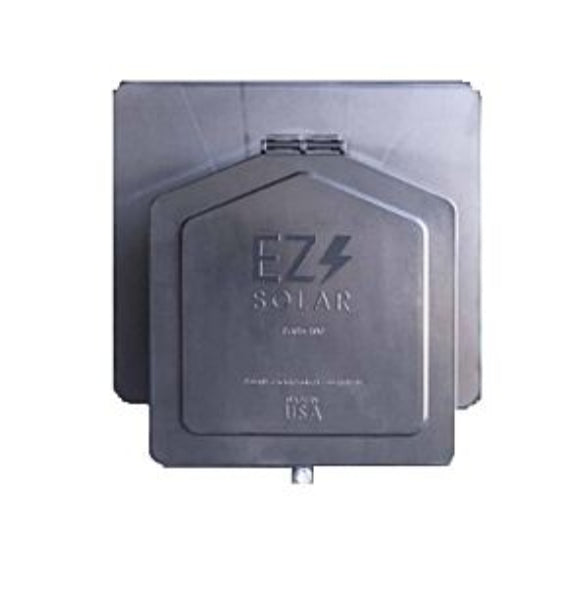

EZ Solar JB-F.100 FORTIS 100 PV Junction Box

EZ Solar JB-F.100 FORTIS 100 PV Junction Box

$34.43
Sale price $34.43
OFF Sold out
Shipping calculated at checkout.

Type

Junction Boxes

SKU

EZS-JB-F.100

102 In stock

Call for Shipping Request for Quote
Description
Reviews

EZ Solar Asphalt Shingle JB-F.100 FORTIS 100 PV

FORTIS 100 (Updated JB-1.2) PV Junction Box - Asphalt Shingle



Key Specification:

  • Manufacturer Part Number: JB-F.100
  • Manufacturer Warranty: 25 Years
  • Shipping Weight: 1.41 lb
  • Shipping Dimensions: 10 x 10 x 3 in
  • Case Qty: 14
Product Query Form 📄 Query for Product
About your query!

Development by DDSHOPAPPS

EZ Solar Asphalt Shingle JB-F.100 FORTIS 100 PV

FORTIS 100 (Updated JB-1.2) PV Junction Box - Asphalt Shingle



Key Specification:

  • Manufacturer Part Number: JB-F.100
  • Manufacturer Warranty: 25 Years
  • Shipping Weight: 1.41 lb
  • Shipping Dimensions: 10 x 10 x 3 in
  • Case Qty: 14

Product Specifications

Parameter Details
Maximum Voltage 1500 VDC / 450 VAC
Maximum Current 80 A (Fortis-60/100), 120 A (Fortis-200)
Wire Size Range 14 AWG to 6 AWG
Minimum Spacing ½ inch between uninsulated live parts
Enclosure Type Type 3R
Roof Slope Range 2.5:12 to 12:12
Max Side Wall Fitting 1 inch
Max Floor Fitting 1 inch
Operating Temperature -35°C to 75°C
