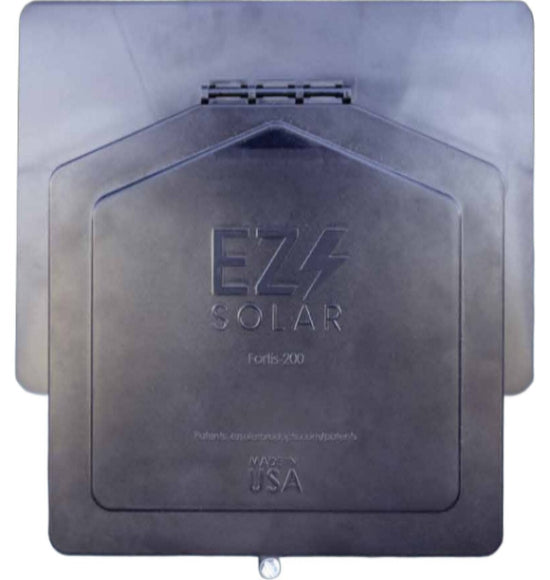

FORTIS 200 (Updated JB-1.XL) PV Junction Box.

FORTIS 200 (Updated JB-1.XL) PV Junction Box.

$38.77
Sale price $38.77
OFF Sold out
Shipping calculated at checkout.

Type

Junction Boxes

SKU

EZS-JB-F.200

303 In stock

Call for Shipping Request for Quote
Description
Reviews



FORTIS 200 (Updated JB-1.XL)

FORTIS 200 (Updated JB-1.XL) PV Junction Box - Asphalt Shingle



Key Specification:

  • Manufacturer Part Number: JB-F.200
  • Manufacturer Warranty: 25 Years
  • Shipping Weight: 1.9 lb
  • Shipping Dimensions: 12 x 12 x 3.25 in
  • Case Qty: 14
Product Query Form 📄 Query for Product
About your query!

Development by DDSHOPAPPS



FORTIS 200 (Updated JB-1.XL)

FORTIS 200 (Updated JB-1.XL) PV Junction Box - Asphalt Shingle



Key Specification:

  • Manufacturer Part Number: JB-F.200
  • Manufacturer Warranty: 25 Years
  • Shipping Weight: 1.9 lb
  • Shipping Dimensions: 12 x 12 x 3.25 in
  • Case Qty: 14

Product Specifications

Parameter Details
Maximum Voltage 1500 VDC / 450 VAC
Maximum Current 80 A (Fortis-60/100), 120 A (Fortis-200)
Wire Size Range 14 AWG to 6 AWG
Minimum Spacing Maintain at least ½ inch clearance between live parts
Enclosure Type Type 3R
Roof Slope Range 2.5:12 to 12:12
Max Side Wall Fitting 1 inch
