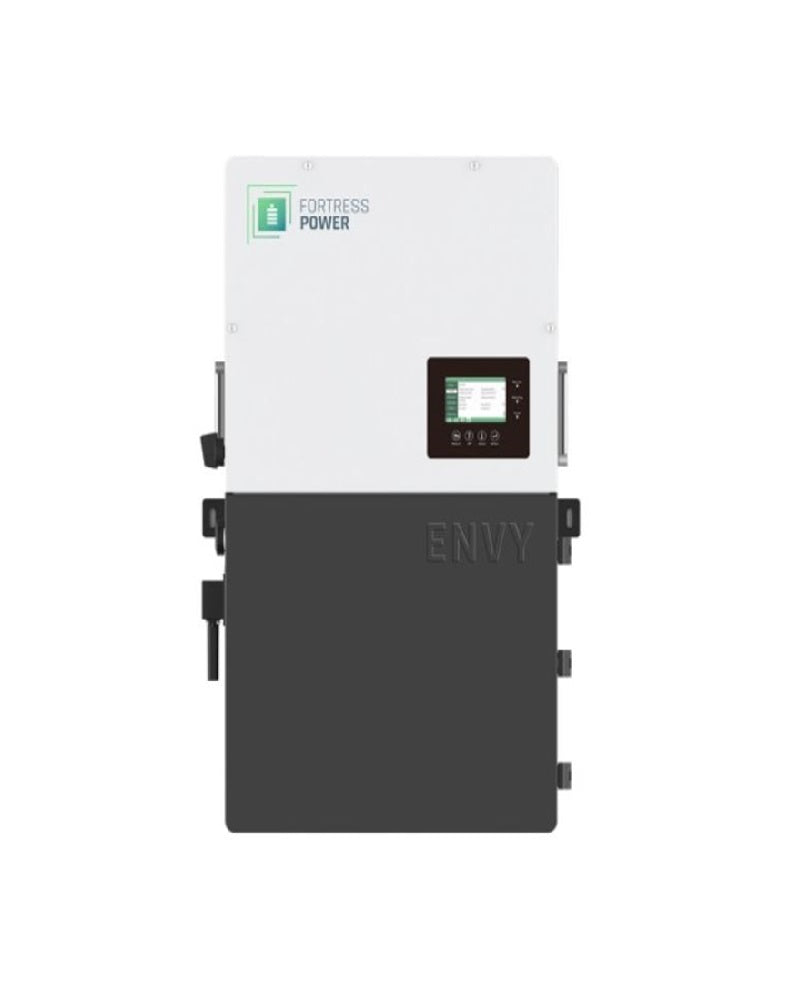

Fortress Power Envy 12kW Solar Hybrid Inverter

Fortress Power Envy 12kW Solar Hybrid Inverter

Regular price $5,076.00
Sale price $5,076.00 Regular price
OFF Sold out
Shipping calculated at checkout.

Type

Inverters

SKU

Envy Inverter 12kW

Minimum Order Quantity: 1

5 In stock

Reviews

Fortress

Fortress Power Envy True 12kW: All-in-One Whole-Home Inverter Solution.

The Fortress Power Envy True 12kW is a comprehensive inverter solution designed for whole-home or small commercial backup power. Compatible with the Fortress Power eFlex 5.4 kWh, eVault MAX 18.5 kWh, or LFP-10 MAX batteries, the Envy delivers reliable performance with a 200A AC passthrough, providing up to 12kW (50A @ 240V) or 10.4kW (50A @ 208V) of backup power.

The Envy features a built-in generator input with AC/DC coupling, on- and off-grid functionality, and 3 MPPT outputs, supporting a maximum PV array of 21 kW. It includes a built-in APsmart Module Level Rapid Shutdown Transmitter and Button, along with pre-installed AC and DC breakers for quick installation and commissioning. The system also offers remote access through an online monitoring app for convenient system management from anywhere.

Supported Applications:

  • Battery Backup
  • Off-Grid
  • Zero Export
  • Time-of-Use
  • Virtual Power Plant Ready
  • Peak Shaving
  • Smart Load Management
  • Microgrid

Pricing Information:

  • Price is EXW (Ex-Works).
  • Shipping costs are not included.
  • Contact us for a shipping quote.
Product Query Form 📄 Query for Product

Fortress

Fortress Power Envy True 12kW: All-in-One Whole-Home Inverter Solution.

The Fortress Power Envy True 12kW is a comprehensive inverter solution designed for whole-home or small commercial backup power. Compatible with the Fortress Power eFlex 5.4 kWh, eVault MAX 18.5 kWh, or LFP-10 MAX batteries, the Envy delivers reliable performance with a 200A AC passthrough, providing up to 12kW (50A @ 240V) or 10.4kW (50A @ 208V) of backup power.

The Envy features a built-in generator input with AC/DC coupling, on- and off-grid functionality, and 3 MPPT outputs, supporting a maximum PV array of 21 kW. It includes a built-in APsmart Module Level Rapid Shutdown Transmitter and Button, along with pre-installed AC and DC breakers for quick installation and commissioning. The system also offers remote access through an online monitoring app for convenient system management from anywhere.

Supported Applications:

  • Battery Backup
  • Off-Grid
  • Zero Export
  • Time-of-Use
  • Virtual Power Plant Ready
  • Peak Shaving
  • Smart Load Management
  • Microgrid

Pricing Information:

  • Price is EXW (Ex-Works).
  • Shipping costs are not included.
  • Contact us for a shipping quote.

         Product Specifications

Category Details
General Data
Dimensions 34.2" x 20.5" x 11.2" (870 x 520 x 285 mm)
Weight 127 lbs. (58 kg)
Display Color LCD
Ambient Temperature Range -4 to 140 °F (-20 to 60 °C)
Cooling Fan
Communication RS485 / Wi-Fi / CAN
Input DC (PV Side)
Max. DC Input Power for Single MPPT 12,000W / 7,000W / 7,000W (1 x 12kW, 2 x 7kW)
Max. PV Input Power 21,000 W
Max. PV Power Delivered to Battery & AC Outputs 18,000 W
DC Input Voltage Range 100V-600V (550V Max Recommended)
Nominal DC Input Voltage 360V
Full Power MPPT Voltage Range 230V-500V
Max. DC Input Current 25A / 15A / 15A
Max. Short Circuit Input Current 31A / 19A / 19A
MPPT Number/(Strings per MPPT) 3 (2/1/1)
Output/Input AC (Grid)
Continuous AC Power to Grid 12,000W (240V) / 10,400W (208V)
Continuous AC Power to Load with Grid or Generator 48,000W (240V) AC Passthrough / 21,000W GEN
Nominal Output Voltage 120V / 240V
Max. Continuous AC Current 50A @ 240V
Nominal AC Frequency 50Hz / 60Hz
