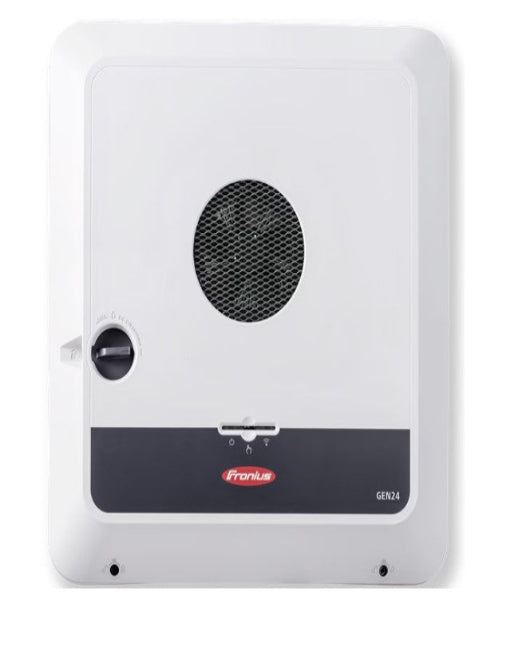

Fronius Primo GEN24 10kW Single Phase, String Inverter.

Fronius Primo GEN24 10kW Single Phase, String Inverter.

$3,042.68
Sale price $3,042.68
OFF Sold out
Shipping calculated at checkout.

Type

Inverters

SKU

FRO-P24-10.0-208-240

Minimum Order Quantity: 1

3 In stock

Call for Shipping Request for Quote
Description
Reviews

Fronius Primo GEN24 10kW Inverter.

Fronius Primo GEN24 10.0 208-240, 10kW Single Phase String Inverter

Key Features:

  • Integrated Shade Management – The Fronius GEN24 ensures maximum yields, even in shaded conditions. With the Dynamic Peak Manager, the intelligent algorithm optimizes PV yields at the string level, eliminating the need for costly module-level optimization components.
Product Query Form 📄 Query for Product
About your query!

Development by DDSHOPAPPS

Fronius Primo GEN24 10kW Inverter.

Fronius Primo GEN24 10.0 208-240, 10kW Single Phase String Inverter

Key Features:

  • Integrated Shade Management – The Fronius GEN24 ensures maximum yields, even in shaded conditions. With the Dynamic Peak Manager, the intelligent algorithm optimizes PV yields at the string level, eliminating the need for costly module-level optimization components.
   Product Specifications

Attribute Description
Number of MPP Trackers 2
DC Input Voltage Range 65V - 600V
Nominal Input Voltage (208Vac, 220Vac, 240Vac) 365V, 365V, 385V
Usable MPP Voltage Range 65V - 480V
MPP Voltage Range (at Rated Power) 260V - 480V
Max Usable Input Current (Idc max) 22A (MPPT1), 22A (MPPT2)
Max Short Circuit Current per MPPT 41.25A (MPPT1), 36A (MPPT2)
Number of DC Connections 2
Max Usable DC Power 10,250W (MPPT1), 10,250W (MPPT2), 10,250W (Total)
Max PV Generator Output 13,500W peak (MPPT1), 13,000W peak (MPPT2), 15,000W (Total)
AC Rated Power (Pac,r) (208Vac, 220Vac, 240Vac) 9,450W, 10,000W, 10,000W
Apparent Power (208Vac, 220Vac, 240Vac) 9,450W, 10,000W, 10,000W
Max Output Power (208Vac, 220Vac, 240Vac) 9,450W, 10,000W, 10,000W
Nominal AC Output Current (208Vac, 220Vac, 240Vac) 45.45A, 45.45A, 41.7A
Dimensions (Height x Width x Depth) 23.0 x 20.8 x 7.1 inches
Weight 46.0 lbs
