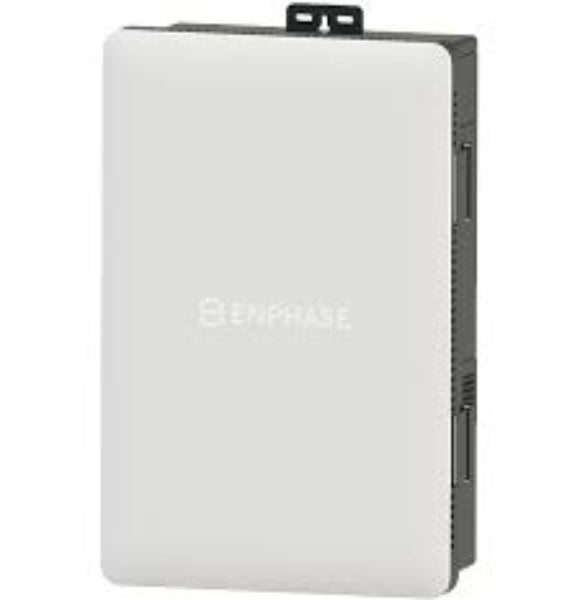

IQ Combiner 6C with three pre-installed breakers

IQ Combiner 6C with three pre-installed breakers

$1,733.33
Sale price $1,733.33
OFF Sold out
Shipping calculated at checkout.

Type

IQ Combiner

SKU

EN-X-IQ-AM1-240-6C-3BRK

127 In stock

Call for Shipping Request for Quote
Description
Reviews

The IQ Combiner 6C has an integrated gateway,

The IQ Combiner 6C has an integrated gateway, breaker spaces for IQ PV, IQ Battery, IQ EV Charger, and controlled loads. It includes integrated CTs for PV/Battery metering, a cell modem with data pack, 2x 20A PV + 1x 40A Battery breakers.

Key Specification:

  • Manufacturer Part Number: X-IQ-AM1-240-6C-3BRK
  • Manufacturer Warranty: 15 Years
  • Shipping Weight: 40 lb
  • Shipping Dimensions: 8.66 x 18.11 x 26.77 in
  • Pallet Qty: 14
Product Query Form 📄 Query for Product
About your query!

Development by DDSHOPAPPS

The IQ Combiner 6C has an integrated gateway,

The IQ Combiner 6C has an integrated gateway, breaker spaces for IQ PV, IQ Battery, IQ EV Charger, and controlled loads. It includes integrated CTs for PV/Battery metering, a cell modem with data pack, 2x 20A PV + 1x 40A Battery breakers.

Key Specification:

  • Manufacturer Part Number: X-IQ-AM1-240-6C-3BRK
  • Manufacturer Warranty: 15 Years
  • Shipping Weight: 40 lb
  • Shipping Dimensions: 8.66 x 18.11 x 26.77 in
  • Pallet Qty: 14

 Product Specifications

Parameter Details
Voltage 240 VAC ±20% (Split-phase: L1-L2 240V, L-N 120V)
Frequency 60 Hz (range 56–63 Hz)
Max PV Current 80 A (combined)
Max Battery Current 2 × 59 A
Max EVSE Current 48 A
Load Controller Current 64 A
Max DER Current 160 A
Backfeed Current 100 A
Max PV Breaker Size Up to 100 A (60 A preinstalled)
Dimensions (H × W × D) 680 × 460 × 220 mm
Operating Temperature -40°C to 46°C
Cooling Method Solar shield with active air cooling
