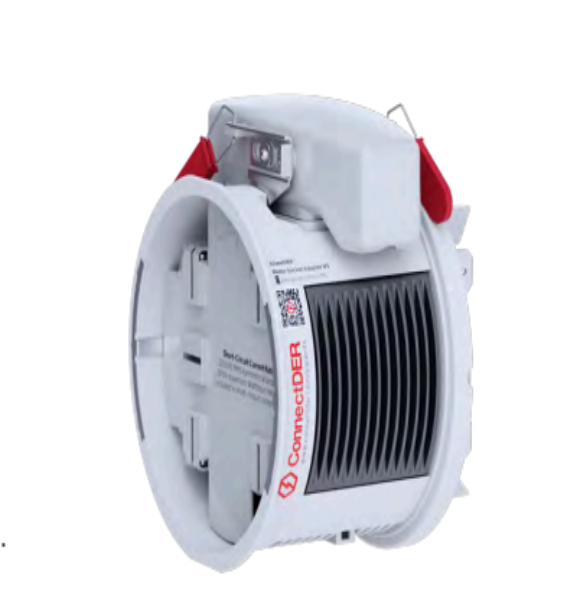

IslandDER METER SOCKET ADAPTER

IslandDER METER SOCKET ADAPTER

$1,011.16
Sale price $1,011.16
OFF Sold out
Shipping calculated at checkout.

Type

Components Parts

SKU

CDR-V-1-A-6

298 In stock

Call for Shipping Request for Quote
Description
Reviews


IslandDER V-1-A-6 Meter Socket Adapter (Analog),

IslandDER V-1-A-6 Meter Socket Adapter (Analog), Max current 200A. Supports whole-home backup via stationary storage. Includes 6' pre-attached factory communications cable.

Specification:

  • Manufacturer Part Number: V-1-A-6
  • Manufacturer Warranty: 12.5 Years
  • Shipping Weight: 7.75 lb
  • Shipping Dimensions: 4.9 x 6.7 x 7.8 in
  • Pallet Qty: 75
Product Query Form 📄 Query for Product
About your query!

Development by DDSHOPAPPS


IslandDER V-1-A-6 Meter Socket Adapter (Analog),

IslandDER V-1-A-6 Meter Socket Adapter (Analog), Max current 200A. Supports whole-home backup via stationary storage. Includes 6' pre-attached factory communications cable.

Specification:

  • Manufacturer Part Number: V-1-A-6
  • Manufacturer Warranty: 12.5 Years
  • Shipping Weight: 7.75 lb
  • Shipping Dimensions: 4.9 x 6.7 x 7.8 in
  • Pallet Qty: 75

         Product Specifications

Specification Details
Enclosure Rating NEMA 3R
Enclosure Type Injection Molded Polycarbonate, UL 94 V5A flame rating
Thermal Management Passive cooling, heat sinks
Optional Neutral Connection Wired to meter socket or 5th stab options
Dimensions (W × H × D) 6.7" × 7.8" × 4.9" (with pluggable connection)
Weight 5.55 lbs / 2.52 kg (with connection module and 6 ft analog cable)
Shipping Weight 7.75 lbs (3.51 kg)
Mounting System Blade interface with 4-jaw or 5-jaw meter socket
Electric Meter Compatibility Type 2S, 12S
Meter Socket Compatibility Ringless, Ring-type, Lever, Horn Bypass
Manual MID Override Externally accessible switch, protected by cover
