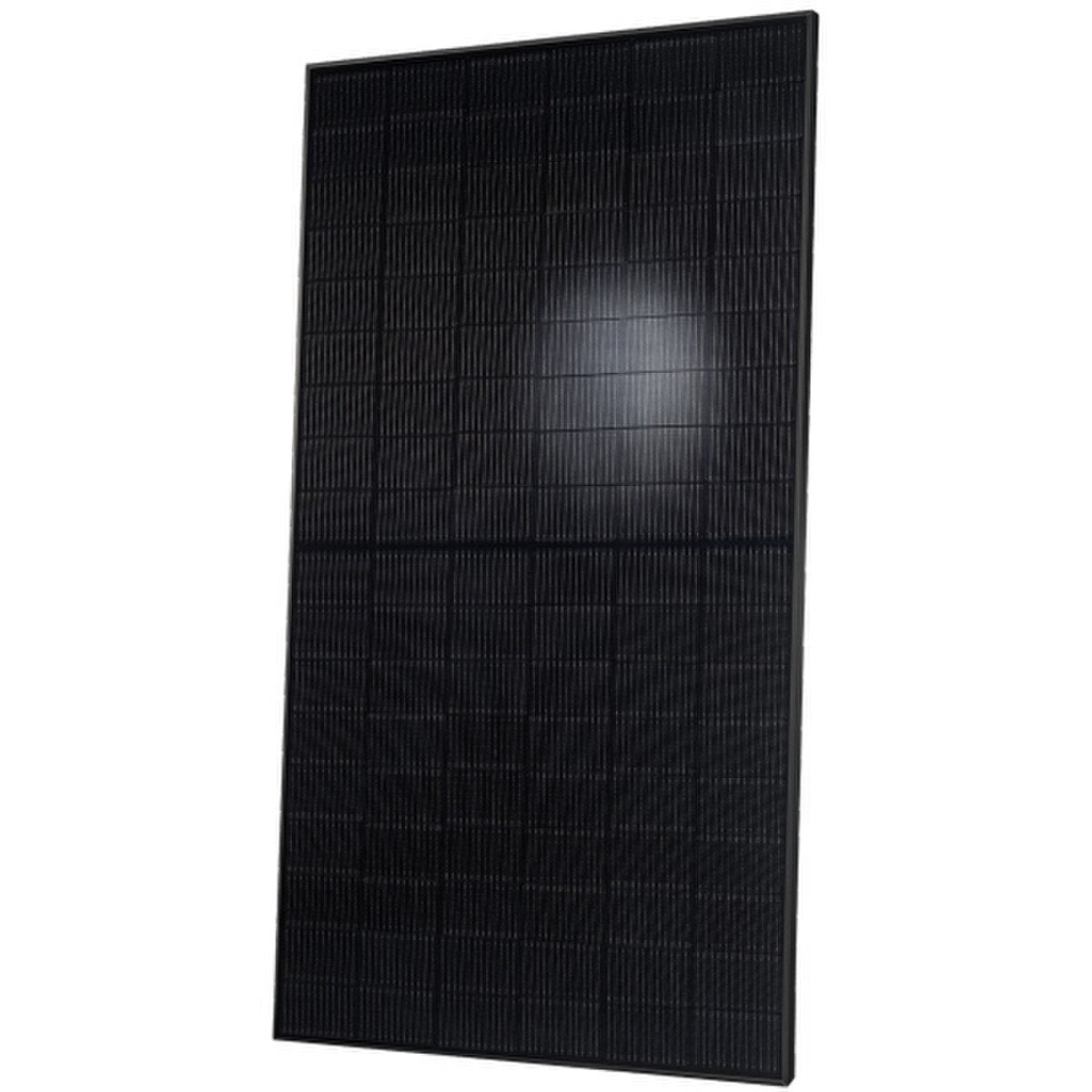

Q CELLS QTRON-BKM-G2-HPLUS-AC-DCA 430Watt 108 1/2 Cells

Q CELLS QTRON-BKM-G2-HPLUS-AC-DCA 430Watt 108 1/2 Cells

Regular price $300.77
Sale price $300.77 Regular price
OFF Sold out
Shipping calculated at checkout.

Type

Solar Panel

SKU

HQC-430-QTRON-BKM-G2.H+-DCA

8427 In stock

Reviews

QCells Q.TRON BLK M-G2.H+ 430 108 Half Cut M10 N-type,

QCells part# Q.TRON BLK M-G2.H+ 430 108 Half Cut M10 N-type TOPCon 430W module, black frame, black backsheet with MC4 connectors. Domestic components: junction box This item includes domestic content and if used in accordance to the provisions set forth by the IRS, may qualify the taxpayer for a Domestic Content Bonus Credit.



Key Specification:

  • Manufacturer Part Number: Q.TRON BLK M-G2.H+ 430
  • Power Output: 430 Watts
  • 108 Cell, Monocrystalline
  • 30mm Depth, Black Frame, White Backsheet
  • 1000 Volts Max Voltage
  • Manufacturer Warranty: 25 Years
  • Shipping Weight: 46.7 lb
  • Shipping Dimensions: 67.8 x 44.65 x 1.18 in
  • Case Qty: 36
  • Pallet Qty: 36
Product Query Form 📄 Query for Product

QCells Q.TRON BLK M-G2.H+ 430 108 Half Cut M10 N-type,

QCells part# Q.TRON BLK M-G2.H+ 430 108 Half Cut M10 N-type TOPCon 430W module, black frame, black backsheet with MC4 connectors. Domestic components: junction box This item includes domestic content and if used in accordance to the provisions set forth by the IRS, may qualify the taxpayer for a Domestic Content Bonus Credit.



Key Specification:

  • Manufacturer Part Number: Q.TRON BLK M-G2.H+ 430
  • Power Output: 430 Watts
  • 108 Cell, Monocrystalline
  • 30mm Depth, Black Frame, White Backsheet
  • 1000 Volts Max Voltage
  • Manufacturer Warranty: 25 Years
  • Shipping Weight: 46.7 lb
  • Shipping Dimensions: 67.8 x 44.65 x 1.18 in
  • Case Qty: 36
  • Pallet Qty: 36

Product Specifications

Parameter Details
Dimensions 67.8 × 44.6 × 1.57 in (1722 × 1134 × 40 mm)
Weight 50.59 lb (22.95 kg)
Front Cover 3.2 mm thermally pre-stressed ARC solar glass
Back Cover Composite film
Frame Black anodized aluminum
Cell Type 6 × 18 monocrystalline Q.ANTUM NEO half-cells
Junction Box 53–101 × 32–60 × 15–18 mm, IP67 with bypass diodes
Cable 4 mm² solar cable, + ≥25.8 in (655 mm), − ≥25.2 in (640 mm)
Connector Stäubli MC4 (IP68 rated)
