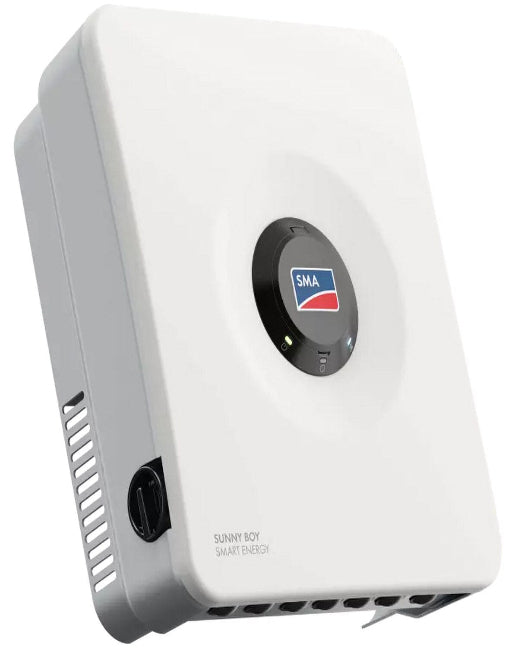

SMA Sunny Boy Smart Energy 5.8kW Inverter.

Name: SMA Sunny Boy Smart Energy 5.8kW Inverter.
Brand: Baywa
SKU: SMA-SBSE5.8-US-50
Price: 2146.65 USD
Availability: InStock

$2,146.65

OFF Sold out

Shipping calculated at checkout.

Type

Inverters

SKU

SMA-SBSE5.8-US-50

Minimum Order Quantity: 1

Availability

29 In stock

Product variants

SMA Sunny Boy Smart Energy 5.8kW 600VDC 208/240VAC Single-Phase.

The SMA Energy System Home builds upon this legacy, enabling homeowners to generate and utilize even more sustainable energy.

Exceptional Flexibility: Supports up to 4 MPPT optimizing channels for optimal system performance.
Simplified Installation: Its compact and lightweight design ensures easier and quicker mounting.
Reliable Performance: No need for complex microinverters or optimizers, ensuring a dependable and efficient system.

Product Query Form 📄 Query for Product

About your query!

Development by DDSHOPAPPS

Description

The SMA Energy System Home builds upon this legacy, enabling homeowners to generate and utilize even more sustainable energy.

Exceptional Flexibility: Supports up to 4 MPPT optimizing channels for optimal system performance.
Simplified Installation: Its compact and lightweight design ensures easier and quicker mounting.
Reliable Performance: No need for complex microinverters or optimizers, ensuring a dependable and efficient system.

Specifications

Product Specifications

Specification	Details
Dimensions	30 x 23 x 14 in
Weight	51 lbs
Operating Temperature Range	−13°F to +140°F (−25°C to +60°C) with derating
Noise Emission (Typical)	TBD
Self-consumption (At Night)	TBD
Environmental Protection Rating	IP65 / Type 3S
Max. PV Array Power (200% Oversizing)	11,600 Wp
Max. DC Voltage	600 V
MPP Voltage Range	60 - 480 V
Startup Input Voltage	66 VDC
Max. Usable Current Input Per MPPT	15 A
Max. Short-Circuit Current Input Per MPPT	30 A (the sum at all inputs must not exceed 60 A)
Number of Independent MPPT Inputs	3
Inputs Per MPPT	1
Connection of MPPT Inputs in Parallel	A & B
