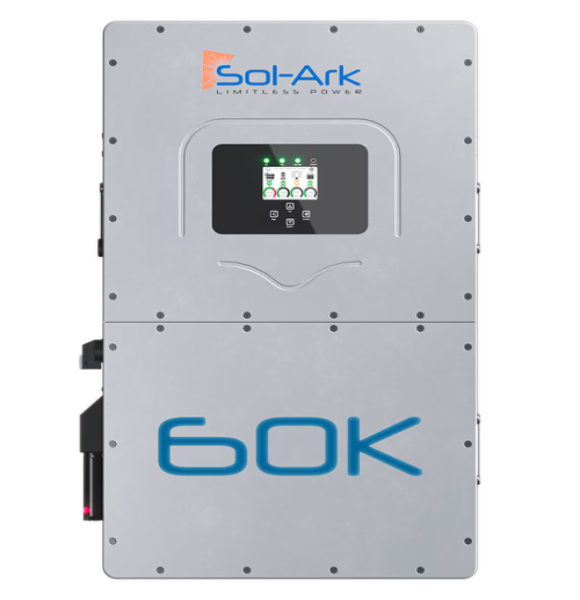

SOL-ARK 60K-3P-480V Commercial Hybrid Inverter

SOL-ARK 60K-3P-480V Commercial Hybrid Inverter

$16,818.75
Sale price $16,818.75
OFF Sold out
Shipping calculated at checkout.

Type

Hybrid Inverter

SKU

SA-60K-3P-480V

Minimum Order Quantity: 1

4 In stock

Call for Shipping Request for Quote
Description
Reviews

Sol-Ark 60K 3-Phase Commercial Hybrid Inverter,

60K-3P-480V, Hybrid Inverter Charger, 277/480V Y or D output, 60kW AC Output, 200A Grid Pass Through, 4x 1000V/36A MPPT Inputs, compatible with Sol-Ark L3 HV-60 and L3 HVR-60 BESS.



Key Specification:

  • Manufacturer Part Number: 60K-3P-480V
  • UL Certificate
  • Power Output: 60000 Watts
  • Voltage: 600 Volt
  • Manufacturer Warranty: 10 Years
  • Performance Warranty: 10 Year Limited Warranty
  • Shipping Weight: 176 lb
  • Shipping Dimensions: 11.6 x 20.8 x 35.2 in
Product Query Form 📄 Query for Product
About your query!

Development by DDSHOPAPPS

Sol-Ark 60K 3-Phase Commercial Hybrid Inverter,

60K-3P-480V, Hybrid Inverter Charger, 277/480V Y or D output, 60kW AC Output, 200A Grid Pass Through, 4x 1000V/36A MPPT Inputs, compatible with Sol-Ark L3 HV-60 and L3 HVR-60 BESS.



Key Specification:

  • Manufacturer Part Number: 60K-3P-480V
  • UL Certificate
  • Power Output: 60000 Watts
  • Voltage: 600 Volt
  • Manufacturer Warranty: 10 Years
  • Performance Warranty: 10 Year Limited Warranty
  • Shipping Weight: 176 lb
  • Shipping Dimensions: 11.6 x 20.8 x 35.2 in

 Product Specifications

Parameter Details
Power Output 60,000 W (continuous, 3-phase)
Nominal AC Voltage 277/480 V
Max PV Power 78,000 W (STC)
Max DC Voltage 1,000 VDC
MPPT Range 150–850 V (startup at 180 V)
Max PV Input Current 36 A per MPPT
MPPT Trackers 4
Battery Compatibility Lithium iron phosphate (160–800 V range)
Battery Charge/Discharge 100 A total (50 A per input)
Transfer Time 5 ms (automatic)
Efficiency 96.5% (CEC) / 97.5% (peak)
Grid Passthrough 180 A continuous, 200 A (10 min)
Dimensions 35.2 × 20.8 × 11.6 inches
Weight ~172–176 lbs
Certifications UL 1741-2021, IEEE 1547-2018, FCC Part 15 Class B
Parallel Operation Up to 10 units (some sources up to 12)
