Soladeck 0999 Outdoor Pass-thru Enclosure.
Soladeck 0999 Outdoor Pass-thru Enclosure.
Regular price
$77.00
Sale price
$77.00
Regular price
Unit price
per
Shipping calculated at checkout.
Type
Inverter ComponentSKU
SD-0999-5B-V2Minimum Order Quantity: 1
158 In stock
Description

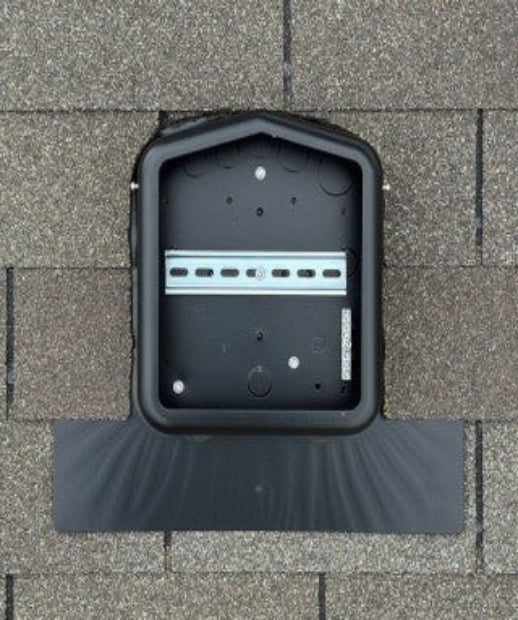

SolaDeck 0999-5B-V2 Flashed Enclosure.
The SolaDeck 0999 Series has been redesigned for improved ease of use and enhanced versatility. This updated model features a compact 3" overall box height with a 255 cubic inch cavity. The flashing measures 15.25" x 17.25" and includes a 7" standard 35mm DIN rail pre-installed. The box allows for all roof deck fastening, and it can be used for passthrough or combining purposes
Key Features:
- Compact Design: 3" box height and 255 cubic inch cavity for efficient use of space.
- Versatile Mounting: Can be mounted vertically or horizontally, with a slotted cover for easy access.
- Multiple Connection Options: Two pre-punched ¾” holes for conduit or other fittings, with UL-listed plugs included.
- Ground Lug Flexibility: Several ground lug options for flexibility in installation.
- High Voltage and Current Ratings: Rated for 1000VDC at 115 amps or 240VAC at 60 amps.
- Durable Construction: UL50 and CSA C22.2 No. 290 listed (NEMA 3R) and conforms to UL 1741 standards.
