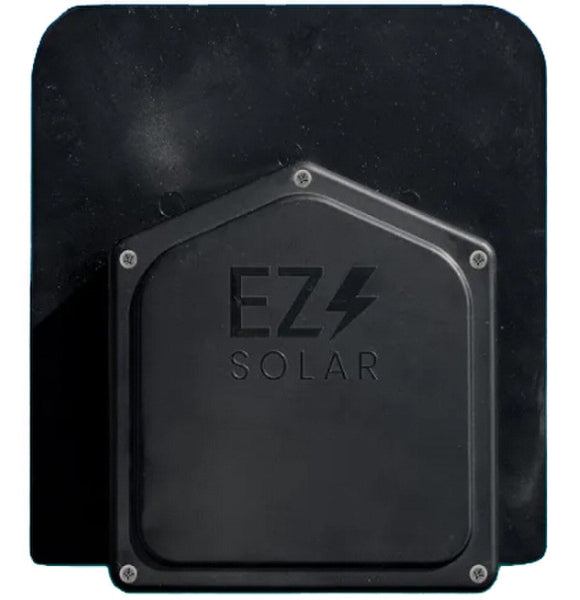

The Ultimate Rooftop Junction Box

The Ultimate Rooftop Junction Box

$34.43
Sale price $34.43
OFF Sold out
Shipping calculated at checkout.

Type

Junction Boxes

SKU

EZS-JB-1.2

13 In stock

Call for Shipping Request for Quote
Description
Reviews

Solar Rooftop PV Junction Box

JB-1.2 EZ Solar Rooftop PV Junction Box - Asphalt Shingle. 1000V/80Amp.



Key Specification:

  • Manufacturer Part Number: JB-1.2
  • Manufacturer Warranty: 25 Years
  • Shipping Weight: 1.45 lb
  • Shipping Dimensions: 11 x 10.5 x 2.86 in
  • Case Qty: 16
  • Pallet Qty: 320
Product Query Form 📄 Query for Product
About your query!

Development by DDSHOPAPPS

Solar Rooftop PV Junction Box

JB-1.2 EZ Solar Rooftop PV Junction Box - Asphalt Shingle. 1000V/80Amp.



Key Specification:

  • Manufacturer Part Number: JB-1.2
  • Manufacturer Warranty: 25 Years
  • Shipping Weight: 1.45 lb
  • Shipping Dimensions: 11 x 10.5 x 2.86 in
  • Case Qty: 16
  • Pallet Qty: 320

 Product Specifications

Parameter Details
Maximum Voltage 1000 V
Maximum Current 80 A
Wire Size Range 14 AWG to 6 AWG
Minimum Spacing At least ½ inch between uninsulated live parts
Enclosure Rating Type 3R
Roof Slope Range 2.5:12 to 12:12
Max Side Wall Fitting 1 inch
Max Floor Fitting 1 inch
Operating Temperature -35°C to 75°C
Compliance UL1741 (JB-1.2), UL1741 compliant connectors
