Victron Advanced Battery Balancer System.

Victron Advanced Battery Balancer System.

$36.21
Sale price $36.21
OFF Sold out
Shipping calculated at checkout.
Call for Shipping

Type

Battery & System Controller

SKU

BBA000100100

Minimum Order Quantity: 1

3 In stock

Description
Reviews

Victron Energy

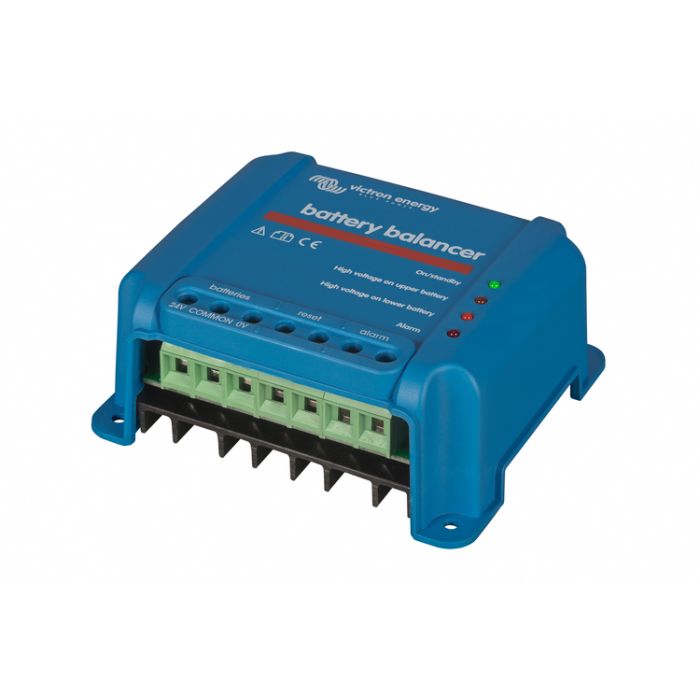

Victron Battery Balancer.

The Victron Battery Balancer ensures equal state of charge across two series-connected 12V batteries or multiple parallel strings of series-connected batteries.

  • When the charge voltage of a 24V system exceeds 27.3V, the Battery Balancer activates and compares the voltage of the two series-connected batteries.
  • It draws up to 0.7A from the battery (or parallel-connected batteries) with the highest voltage, creating a charge current differential that equalizes the state of charge across all batteries.
  • Multiple Battery Balancers can be connected in parallel for larger systems.
  • A 48V battery bank can be balanced using three Battery Balancers.

Pricing Information:

  • The listed price is EXW (Ex-Works, excluding shipping costs).
  • Please contact us directly for a shipping quote.
Product Query Form 📄 Query for Product
About your query!

Development by DDSHOPAPPS

Victron Energy

Victron Battery Balancer.

The Victron Battery Balancer ensures equal state of charge across two series-connected 12V batteries or multiple parallel strings of series-connected batteries.

  • When the charge voltage of a 24V system exceeds 27.3V, the Battery Balancer activates and compares the voltage of the two series-connected batteries.
  • It draws up to 0.7A from the battery (or parallel-connected batteries) with the highest voltage, creating a charge current differential that equalizes the state of charge across all batteries.
  • Multiple Battery Balancers can be connected in parallel for larger systems.
  • A 48V battery bank can be balanced using three Battery Balancers.

Pricing Information:

  • The listed price is EXW (Ex-Works, excluding shipping costs).
  • Please contact us directly for a shipping quote.

       Product Specifications

Specification Details
Input Voltage Range Up to 18V per battery (36V total)
Turn On/Off Levels 27.3V ± 1% / 26.6V ± 1%
Current Draw (Off) 0.7 mA
Balancing Start (Deviation) 50 mV
Maximum Balancing Current 0.7 A (deviation > 100 mV)
Alarm Trigger/Reset Levels 200 mV / 140 mV
Alarm Relay 60V / 1A, normally open
Temperature Protection Yes
Operating Temperature -30 to +50°C
Humidity Up to 95% (non-condensing)
Enclosure Color Blue (RAL 5012)
Protection Category IP22
Weight 0.4 kg
Dimensions (H x W x D) 100 x 113 x 47 mm
