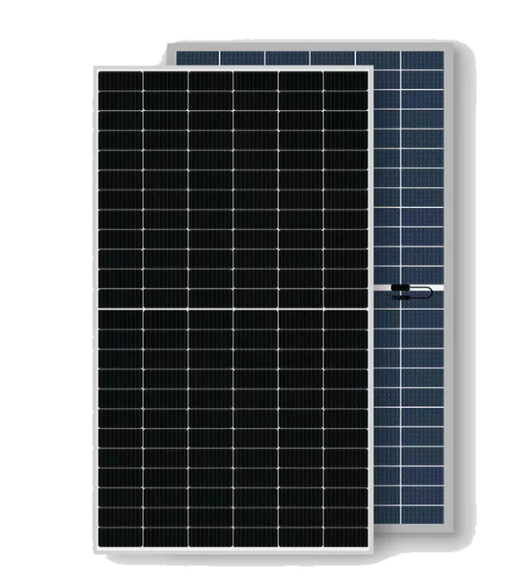

ZNSHINE SOLAR 550W Bifacial Dual Glass Solar Panel | ZXM7-SHLDD144

ZNSHINE SOLAR 550W Bifacial Dual Glass Solar Panel | ZXM7-SHLDD144

$148.50
Sale price $148.50
OFF Sold out
Shipping calculated at checkout.

Type

Solar Panel

SKU

ZXM7-SHLDD144-550

Minimum Order Quantity: 180

10210 In stock

Call for Shipping Request for Quote
Description
Reviews

ZNSHINE Logo

ZNSHINE SOLAR ZXM7-SHLDD144 series is a high-performance solar panel,

The ZXM7-SHLDD144 series panel has a peak power output of 550 watts, making it suitable for residential, commercial.



Key Features:

  • Maximum Power:  550 watts
  • Technology: 10BB Half-cell Bifacial Single Glass Monocrystalline PERC
  • Cells: 144
  • Efficiency: 21.28%
  • Dimensions:  89.68×44.65×1.18 inches(2278*1134*30mm)
  • Weight: 61.73lbs(28.0kg)
  • 12 years product warranty, 25 years output guarantee
  • Certificate: UL61730 / IEC61215 / IEC 61730 / IEC61701 / IEC62716
Product Query Form 📄 Query for Product
About your query!

Development by DDSHOPAPPS

ZNSHINE Logo

ZNSHINE SOLAR ZXM7-SHLDD144 series is a high-performance solar panel,

The ZXM7-SHLDD144 series panel has a peak power output of 550 watts, making it suitable for residential, commercial.



Key Features:

  • Maximum Power:  550 watts
  • Technology: 10BB Half-cell Bifacial Single Glass Monocrystalline PERC
  • Cells: 144
  • Efficiency: 21.28%
  • Dimensions:  89.68×44.65×1.18 inches(2278*1134*30mm)
  • Weight: 61.73lbs(28.0kg)
  • 12 years product warranty, 25 years output guarantee
  • Certificate: UL61730 / IEC61215 / IEC 61730 / IEC61701 / IEC62716

Product Specifications

Specification Value
Maximum Power (Pmax) 550 W
Voltage at Pmax (Vmp) 41.90 V
Current at Pmax (Imp) 13.13 A
Open Circuit Voltage (Voc) 50.2 V
Short Circuit Current (Isc) 13.89 A
Maximum System Voltage DC 1500V (UL)
Maximum Series Fuse Rating 30 A
Front Side Static Load 5400 Pa
Rear Side Static Load 2400 Pa
Junction Box IP68, 3 Diodes
Connectors Original MC4
Cable Size 4 mm², 400 mm (Customizable)

You can download the related files below:
